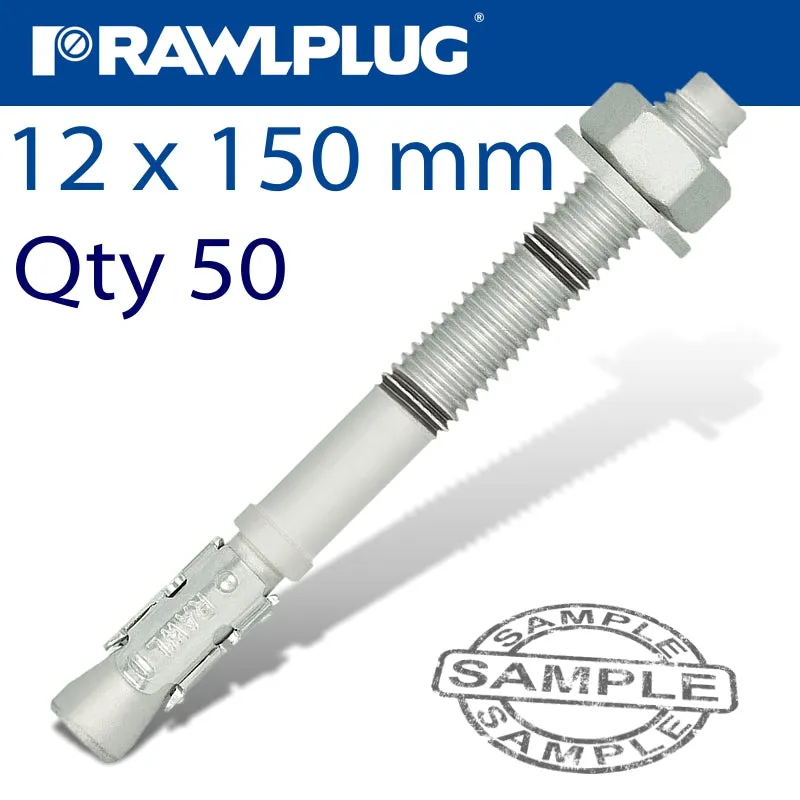

R-HPTIIZF Zinc flake throughbolt
Bolt dimensions: 12 mm x 150 mm
[Qty: 50 / Box]
Throughbolt for cracked and non-cracked concrete.
In order to choose the right anchor for a particular application, there are several key aspects to be considered: environmental conditions, base material, anchor spacing and edge distances, load bearing capacity, loading type, setting data.
Features:
- New generation of sleeve anchors with unique protective layer
- Highest quality to receive optimal load capability
- High performance in cracked and non-cracked concrete confirmed by ETA Option 1
- Fire resistant
- R-HPTIIZF is suitable for reduced embedment to avoid contact with reinforcement
- Embedment depth markings help to ensure precise installation of the anchor
- Design of R-HPTIIZF allows drilling and installing directly through the fixture and helps to reduce installation effort
Applications
- Cladding restraints
- Consoles
- Barriers
- Structural steel
- Curtain walling
- Hand rails
- Heavy Plant
- Balustrading
- Passenger lifts
- Facades
Base materials
Approved use in:
- Cracked concrete C20/25-C50/60
- Non-cracked concrete C20/25-C50/60
- Natural Stone
RAW R-HPTIIZF-12150-55Screwing/Fastening/Fixing > Mechanical Anchors > Throughbolts
